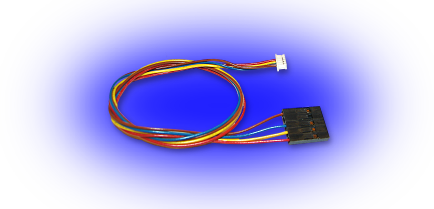

Pigtail Cable for DT4U

SKU: CABPG

Replacement multicolor pigtail cable that goes from DT4U to altimeter's Data port. Also useful for interfacing MAWD, Pnut, and StratoLogger altimeters to telemetry transmitters or payloads that need real-time in-flight data.

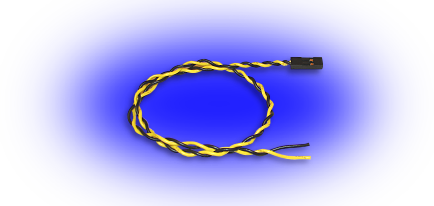

Power Switch Cable

SKU: CABSW

Power Switch Cable to attach external power switch (not supplied, consider item SAS5) to Alt15K/WD, Pnut, or APRA altimeter.

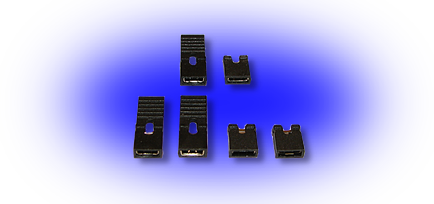

Spare Shunts

SKU: SHNT

Spare power switch shunts for Alt15K/WD, Pnut, and APRA altimeters. Three low-profile, and three extended profile with convenient pull tabs.

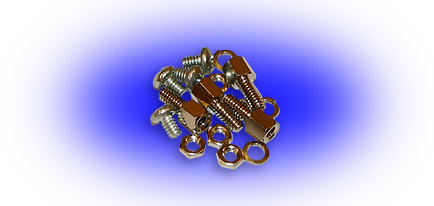

Mounting Hardware

SKU: MH44

Additional mounting hardware for MAWD, HA45, StratoLogger, Pnut, and APRA altimeters and MT3G MT3T timers, and MT4  timers.

Package includes 4-40 standoffs, screws, nuts, and washers.

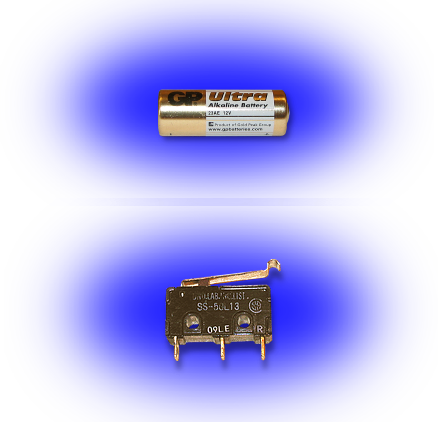

12V A23 Type Battery

SKU: A12V

Miniature 12 volt battery for very low current applications. Will power the Alt15K/WD or APRA altimeter for 24 to 30 hours. Not well suited for higher drain applications like the miniAlt/WD or our timers.

Snap Action Switch

SKU: SAS5

Single-pole double-throw snap action switch rated at 5 amperes. Can be wired to turn circuit "on" when pushed or when released. Typical use involves setup with pull-pin attached to "remove before flight" flag; removing the pin releases the button and turns circuit "on" (see example application in StratoLogger users manual). Activation lever can be removed for pull-pin applications or weighted for acceleration switch use.

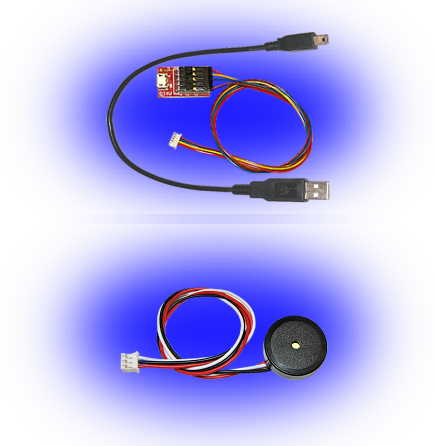

USB Data Transfer Kit

SKU: DT4U

This data transfer kit incorporates level shifting and USB conversion circuitry to make the logic level signals from the altimeter compatible with standard USB ports. It also includes a USB A to USB micro B cable to connect to the host computer.

Amplified External Beeper

SKU: AEB1

Larger, louder add-on beeper for StratoLogger Altimeter. No wiring necessary - just plug the attched cable into the StratoLogger's Audio port. The AEB1 amplifies all sounds (powerup settings, continuity beeps, post-flight readouts, and locator siren) by up to 26db.  Not compatible with StratoLoggerCF.

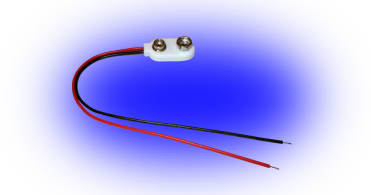

9V Battery Clip

SKU: CAB9V

High quality battery clip for standard 9V batteries.
